Right Luggage Compartment Relay and Fuse Carrier, Removing and Installing
Removing
- With ignition switched off, disconnect battery Ground (GND) wire → Battery, Disconnecting and Connecting .
- Remove ground stud - 3 - and nut - 2 -.
- Detach Energy Management Control Module J644.
- Disconnect connectors - 1 -.
- Release Comfort System Central Control Module J393 - arrows - and detach it from relay and fuse box.
NOTE:
- Electrical connectors remain connected.

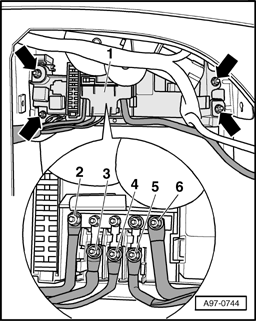

- Open the cover - 1 -.
- Remove wires - 2 through 6 -.
- Remove nuts - arrows - and detach relay and fuse box.
- Unclip fuse boxes at relay and fuse box.
- Detach relays and control modules and then unclip appropriate relay carrier.
NOTE:
- For exact assignment of relay and fuse carrier in right luggage compartment, refer to current wiring diagram → Electrical Wiring Diagrams, Troubleshooting and Component Locations.
Installing
Install in reverse order of removal, observing the following:
- Install Energy Management Control Module J644 → Installing under Energy Management Control Module, Removing and Installing , observing installation sequence.
Tightening Specifications
| Component | Nm |
|---|---|
| Relay and fuse carrier to body | 7.5 |
| Wires to fuse box | 7.5 |
