Front Footwell Lamp, Removing and Installing

Removing

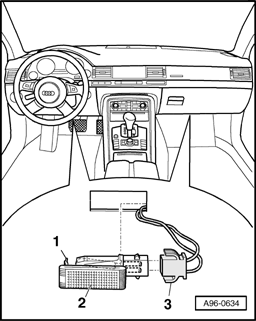

Fig 1: Retainer Tab, Footwell Light & Electrical Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Use flat screwdriver to press in retainer tab - 1  - and lift out footwell light - 2  -.
• Disconnect electrical connector - 3  -.
• Remove the bulb (12 V, 5 W) from the socket on the rear of the footwell lamp.

Installing

Install in reverse order of removal, observing the following:

• Insert footwell lamp into opening and engage on opposite side.
