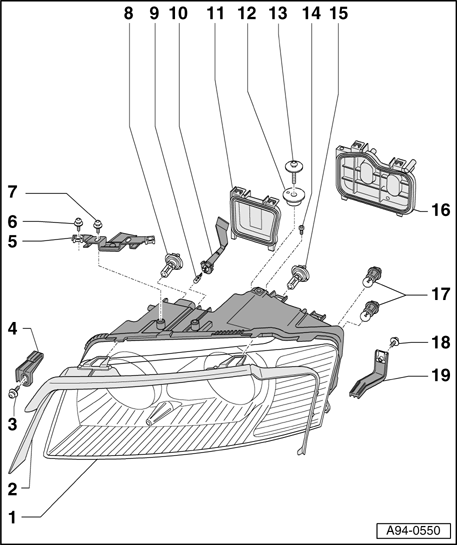

Halogen Headlamps, Component Overview

1 - Headlamp housing

• Removing and installing → Halogen Headlamps, Removing and Installing

2 - Gap cover

3 - Bolt (6 Nm)

4 - Headlight housing bracket

5 - Headlight housing bracket

• To adapt headlamp to body contour, slacken off bolt - item 7  - and swivel headlamp housing

6 - Bolt (6 Nm)

7 - Bolt (3 Nm)

8 - High beam bulb

• H1 - 12 V, 55 W
• Changing bulb → High Beam Bulb, Replacing

9 - Parking light bulb

• Glass socket lamp 12 V, 5 W
• Changing bulb → Parking Lamp Bulb, Replacing

10 - Lamp socket

• For parking light bulb

11 - High beam housing cover

• Release retainer tabs to remove

12 - Adjusting element

• for adjusting headlamp to fender and bumper contour

13 - Bolt (6 Nm)

14 - Bolt (1 Nm)

• For housing cover for low beam

15 - Low beam bulb

• H7 - 12 V, 55 W
• Changing bulb → Low Beam Bulb, Replacing

16 - Low beam housing cover

17 - Turn signal indicator bulb

• 12 V, 16 W
• Qty. 2
• Orange
• Changing bulb → Turn Signal Bulb, Replacing

18 - Bolt (6 Nm)

19 - Headlight housing bracket
