Spring Mat With Seat Pan Wiring Harness Overview

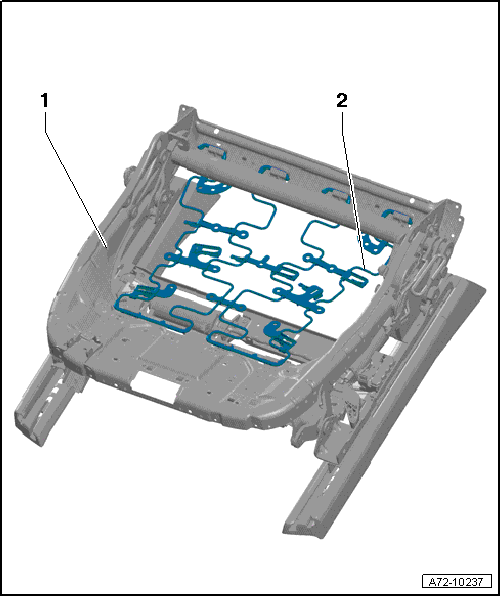

Fig 1: Identifying Spring Mat With Seat Pan Wiring Harness

Courtesy of AUDI OF AMERICA, LLC

Upper Seat Frame
Spring Mat with Wiring Harness
- Removing and Installing. Refer to SPRING MAT WITH SEAT PAN WIRING HARNESS, REMOVING AND INSTALLING .
  NOTE:
  For clarity reasons, the wiring harness on the spring mat is not shown in the illustration.
