Lumbar Support Curvature And Height Adjustment Motors Overview

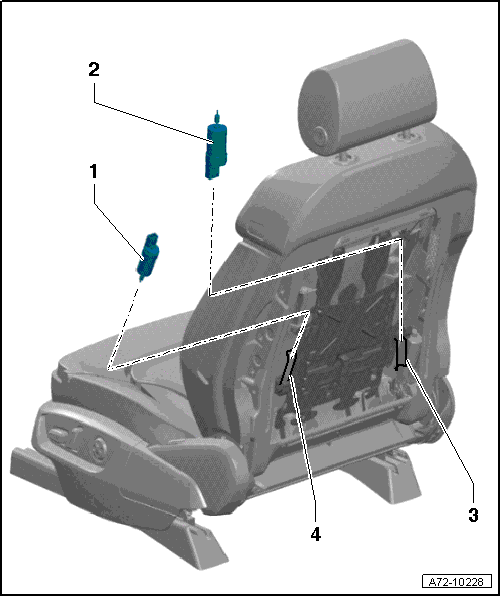

Fig 1: Identifying Lumbar Support Curvature And Height Adjustment Motors

Courtesy of AUDI OF AMERICA, LLC

1. Driver Seat Lumbar Support Height Adjustment Motor -V129- or Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-
   • Removing and Installing. Refer to LDriver Seat Lumbar Support Height Adjustment Motor -V129- AND Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-, REMOVING AND INSTALLING .
2. Driver Seat Lumbar Support Curvature Adjustment Motor -V125- or Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-
   • Removing and Installing. Refer to Driver Seat Lumbar Support Curvature Adjustment Motor -V125- AND Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-, REMOVING AND INSTALLING .
3. Bracket
4. Bracket
