Driver Seat Lumbar Support Adjustment Switch -E176- AND Front Passenger Seat Lumbar Support Adjustment Switch -E177- OVERVIEW

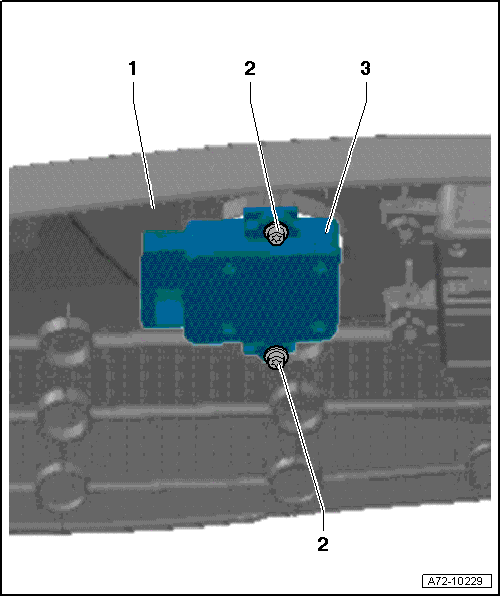

Fig 1: Identifying Lumbar Support Adjustment Switch E176/E177

Courtesy of AUDI OF AMERICA, LLC

1. Sill-Side Trim
2. Bolt
   • 0.5 Nm
3. Switch for Lumbar Support Adjustment
   • Driver Seat Lumbar Support Adjustment Switch -E176-
   • Front Passenger Seat Lumbar Support Adjustment Switch -E177-
   • Removing and Installing. Refer to Driver Seat Lumbar Support Adjustment Switch -E176- AND Front Passenger Seat Lumbar Support Adjustment Switch -E177-, REMOVING AND INSTALLING .
   • Switch cannot be replaced separately.
