Driver Seat Angle Adjustment Motor -V243- AND Front Passenger Seat Angle Adjustment Motor -V244- OVERVIEW

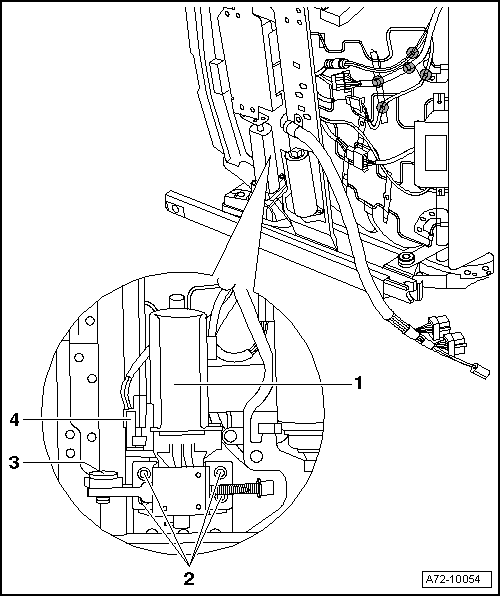

Fig 1: Identifying Motor For Seat Tilt Adjustment Components

Courtesy of AUDI OF AMERICA, LLC

1. Seat Angle Adjustment Motor
   • Driver Seat Angle Adjustment Motor -V243-
   • Front Passenger Seat Angle Adjustment Motor -V244-
   • Removing and Installing. Refer to Driver Seat Angle Adjustment Motor -V243- OR Front Passenger Seat Angle Adjustment Motor -V244-, REMOVING AND INSTALLING .
2. Bolt
   • 12 Nm
   • Quantity: 4
3. Bolt
   • 20 Nm
4. Connector
