Driver Backrest Adjustment Motor -V45- AND Front Passenger Backrest Adjustment Motor -V46- OVERVIEW

NOTE:

For clarity reasons, the backrest is shown without lumbar support, padding and cover.

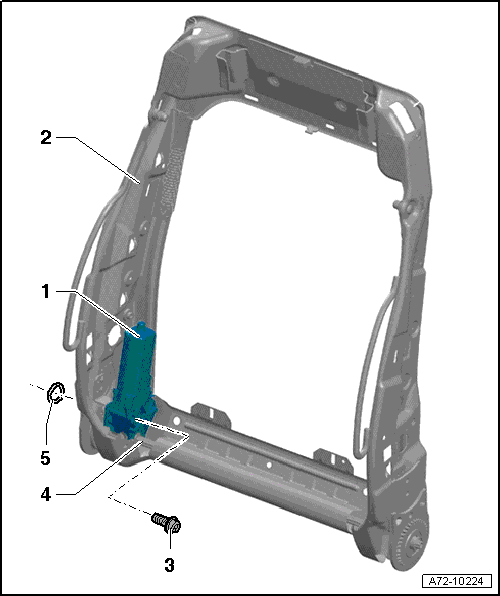

Fig 1: Drivers Backrest Adjustment Motor V45 Or V46 - Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Backrest Adjustment Motor
   • Driver Backrest Adjustment Motor -V45-
   • Front Passenger Backrest Adjustment Motor -V46-
   • Removing and Installing. Refer to Driver Backrest Adjustment Motor -V45- AND Front Passenger Backrest Adjustment Motor -V46-, REMOVING AND INSTALLING .
2. Front Backrest
   • Only backrests shown.
3. Bolt
4. Shaft
5. Spring Washer
   • Always replace if removed.
