Front Driver Seat Overview

-- Position screws -2- in sequence -A-, -B-, -C- and -D- and tighten to the specification in same sequence.

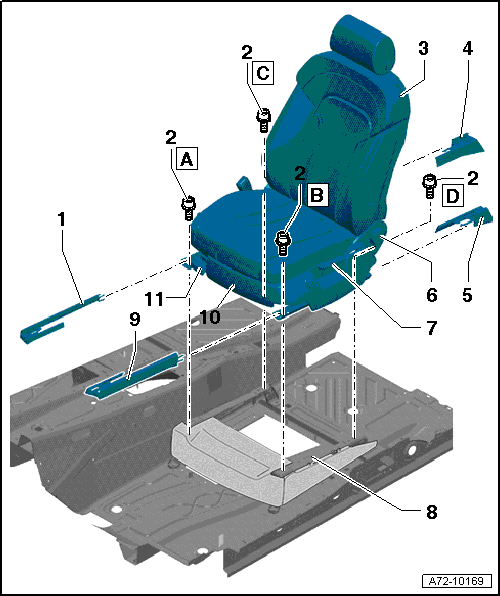

Fig 1: Identifying Driver Seat Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Seat Rail Cover
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
2. Screw, Self-Locking
   • 45 Nm
   • Always replace if removed.
   • Clean nut threads before installing new screws.
   • Observe installation sequence.
3. Driver Seat
   • Removing and Installing. Refer to FRONT SEAT, REMOVING AND INSTALLING .
4. Seat Rail Cover
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
5. Seat Rail Cover
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
6. Backrest Adjusting Wheel
   • Removing and Installing. Refer to BACKREST ADJUSTING WHEEL, REMOVING AND INSTALLING .
7. Seat Height Adjustment Handle
   • Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
8. Driver Seat Console
9. Seat Rail Cover
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
10. Trim
    • Sill side
    • Removing and Installing. Refer to TRIM, SILL SIDE, REMOVING AND INSTALLING .
11. Handle
    • For seat forward/back adjustment.
    • Removing and Installing. Refer to SEAT FORWARD/BACK ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
