Windshield Wiper Motor -V- WITH Wiper Motor Control Module -J400-, REMOVING AND INSTALLING: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Removal Of Windshield Wiper Arm -1- And -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove windshield wiper arm -1- and -3-, refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .

-- Remove rubber seal -5- and remove plenum chamber cover -4-.

CAUTION:

Danger of damaging the plenum chamber cover.

Coat the transition between the windshield and cowl panel trim -2- with some soapy water and carefully pull the cowl panel trim vertically out of the retainer on the windshield beginning at the edge of the window.

-- Remove plenum chamber cover -2- carefully from the windshield.

-- Remove engine cover.

-- Remove screws -arrows-, rotate wiper crank if necessary.

-- Completely remove windshield wiper frame -2-.

-- Disconnect electrical connector -1- with Elbow Assembly Tool T10118.

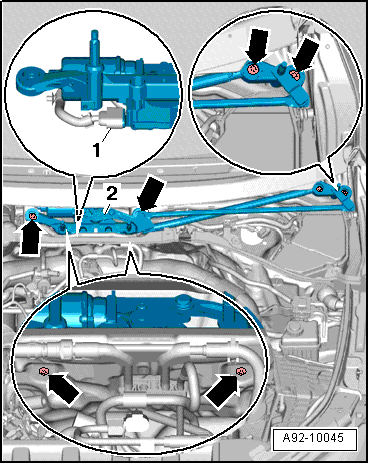

Fig 2: Identifying Screws -Arrows-

Courtesy of AUDI OF AMERICA, LLC
