Windshield Wiper Arm, Removing And Installing: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the windshield wiper motor is to be run during the work procedure, the hood must be closed, otherwise the voltage supply of the wiper motor will be interrupted.

-- Turn on the ignition.

-- Operate "one-touch wiping" and let wiper arms run to end position.

-- Turn off the ignition and remove the key.

NOTE:

Ignore items -1, 2, 4 and 5-.

-- Using a screw driver, pry cover caps off wiper arms.

Fig 1: Identifying Removal Of Windshield Wiper Arm -1- And -3-

Courtesy of AUDI OF AMERICA, LLC

Windshield Wiper, Driver Side:

-- Remove the nut -3-.

-- Position the Puller - Wiper Arm Kit - Puller 4 T10369/4 on the wiper arm -1- as illustrated.

-- Mount the pressure piece on the wiper axle.

-- Rotate the bolt -2- clockwise until the wiper arm is removed from the axle.

-- Remove The Wiper Arm.

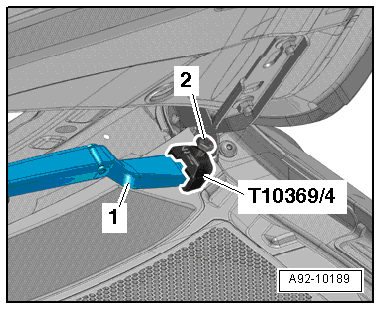

Fig 2: Positioning Puller T10369/4 On Wiper Arm -1-

Courtesy of AUDI OF AMERICA, LLC

Windshield Wiper, Passenger Side:

-- Loosen nuts -1- and -6- a few turns.

-- Position the Puller - Wiper Arm Kit - Puller 1 T10369/1 on the wiper arm -4- as illustrated.

-- Position the thrust piece -5- on the wiper axle.

-- Rotate the bolt -3- clockwise until the wiper arm is removed from the axle.

-- Remove the nuts and remove the wiper arms -2- and -4-.

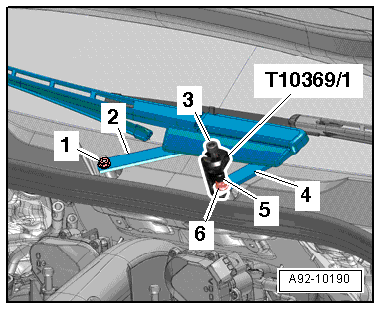

Fig 3: Locating Nuts -1- And -6-
