Washer Fluid Reservoir Filler Neck, Removing And Installing: Removal
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

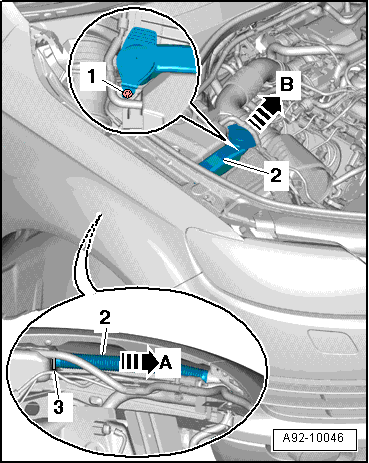

-- Remove screw -1- on filler tube -2-.
-- Remove front right wheel housing liner, refer to Wheel Housing Liners .
-- Remove filler tube filler hose -2- from washer fluid reservoir -arrow A- and from body cut-out -arrow B-.
