Headlamp Washer System Spray Nozzles, Removing And Installing: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Spreading Side Walls Of Cover -1- For Spray Nozzle -Arrow A- And Swing Cover Down -Arrow B-

Courtesy of AUDI OF AMERICA, LLC

-- Remove front bumper cover, refer to FRONT BUMPER, REMOVING AND INSTALLING .

NOTE:

Lay cloths between bumper and pliers to protect bumper cover.

-- Pull spray nozzle telescope out of bumper cover as far as stop.

Hold telescope in extended position with pliers.

-- Spread side walls of cover -1- for spray nozzle -arrow A- and swing cover down -arrow B-.

-- Carefully disengage cover side walls from retaining pins -2- and -3-.

-- Clamp off the windshield washer fluid hose -1- with Hose Clamps - Up To 25mm 3094.

Fig 2: Clamping Off Washer Fluid Hose

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Lay a cloth under the point of separation to catch any washer fluid.

-- Remove fluid hose -2- from spray nozzle -1-.

-- Remove screws -arrows- and remove spray nozzle.

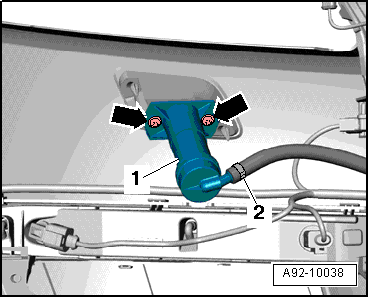

Fig 3: Removing Spray Nozzle

Courtesy of AUDI OF AMERICA, LLC
