Wheel Housing Trim, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Observe the following when doing so:

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

NOTE:

If trim clamps remain in body mounting points, remove these and insert them in trim.

Check clamps for damage or deformation, replace if necessary.

-- Guide seat belt -3- through opening -arrow A- in wheel housing trim -2-.

Fig 1: Identifying Belt Anchor/Seat Belt Screw -1- On Body

Courtesy of AUDI OF AMERICA, LLC

-- Secure the belt anchor/seat belt to the body using the bolt -1-. The anchor depression -arrow B- must rest on the anti-twist mechanism -arrow C-

-- Insert the wheel housing trim with mounts -1- in luggage compartment side trim -2-.

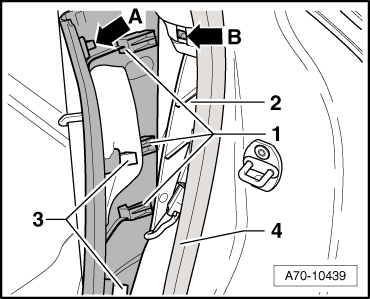

Fig 2: Wheel Housing Trim With Mounts -1- In Luggage Compartment Side Trim -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Clip the wheel housing trim with clamps -3- to the C-pillar while inserting the tab -arrow A- in the recess -arrow B- of the C-pillar trim.

-- Draw door seal lip -4- over wheel housing liner.
