Tie-Down Eye Retaining Rail, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

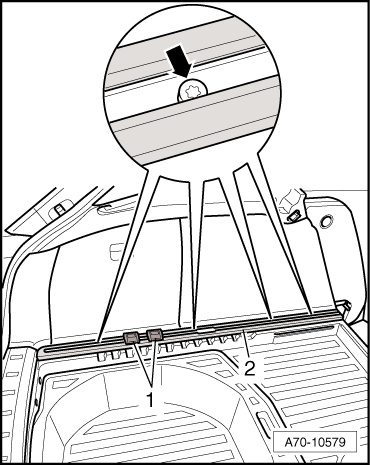

Fig 1: Slide Tie-Down Eyes -1- Together In Retaining Rail -2- So That They Are Not Over The Screws.

Courtesy of AUDI OF AMERICA, LLC

-- Slide tie-down eyes -1- together in retaining rail -2- so that they are not over the screws.

-- Remove screws -arrow- and remove retaining tracks.
