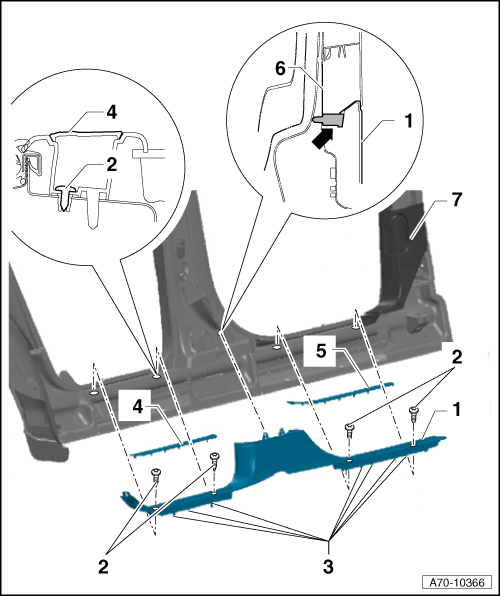

Sill Panel Strip Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Sill Panel Strip
- Removing and Installing. Refer to SILL PANEL STRIP, REMOVING AND INSTALLING .
- when installing, pins -arrow- must be inserted in hole in body. Refer to -Item 6- SILL PANEL STRIP OVERVIEW.
- Bolt
- 2.5 Nm
- Clips
- Check for damage, replace if necessary.
- Rear Trim
- remove with Trim Removal Wedge3409.
- Front Trim
- remove with Trim Removal Wedge3409.
- Body
- B-pillar
- A-Pillar Lower Trim
- Must be installed before installing sill panel strip.
