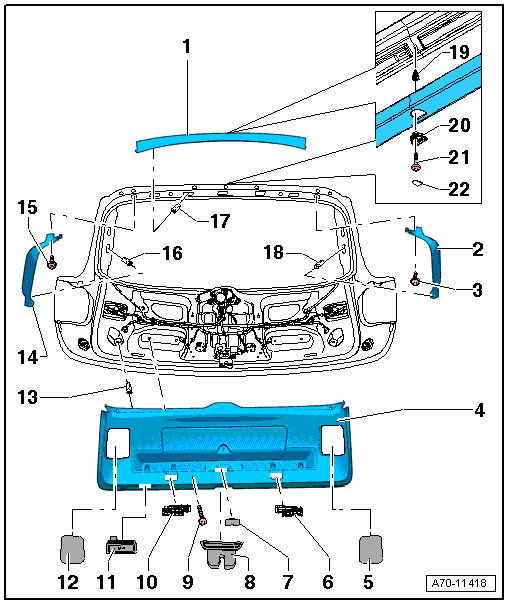

Rear Lid Trim Panel Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Component designation relates to direction of travel.
- Upper Center Rear Lid Trim
- Clipped in with 4 or 5 clips when installing the sun shade on the rear lid.
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING .
- Upper Left Rear Lid Trim
- Is secured to the rear lid with two clamps and one screw.
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Lower Rear Lid Trim
- Can only be removed after removing upper trim.
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING .
- Cover
- For the inner left tail lamp.
- Unclip with Trim Removal Wedge3409.
- There is a lower trim screw located behind cover.
- Left Luggage Compartment Lights
- Unclip with Trim Removal Wedge3409.
- Cover
- For luggage compartment emergency release.
- Rear Lid Lock Trim
- Inserted in lower trim.
- Bolt
- 1.5 Nm
- 2 screws are only accessible after removing warning triangle.
- 2 screws are located under the inner tail lamp covers.
- Right Luggage Compartment Lights
- Is not installed on all vehicles.
- Rear Lid Lock Button in Luggage Compartment -E406-
- Is not installed on all vehicles.
- Retrofitting Rear Lid Lock Button in Luggage Compartment -E406- opening in lower rear lid trim. Refer to ADDING THE OPENING FOR THE Rear Lid Lock Button in Luggage Compartment -E406- IN THE LOWER REAR LID TRIM .
- Cover
- For the inner right tail lamp.
- Unclip with Trim Removal Wedge3409.
- There is a lower trim screw located behind cover.
- Clips
- Quantity: 6
- Inserted in lower trim.
- Replace if damaged or deformed.
- Upper Right Rear Lid Trim
- Is secured to the rear lid with two clamps and one screw.
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Clips
- Quantity: 2
- Insert in upper right trim.
- Replace if damaged or deformed.
- Clips
- Quantity: 5
- Insert in upper center trim.
- Replace if damaged or deformed.
- Clips
- Quantity: 2
- Insert in upper left trim.
- Replace if damaged or deformed.
- Clip
- Sun Shade Mount
- If equipped.
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Cover
- For the sun shade mount.
