Rear Cross Panel Trim, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

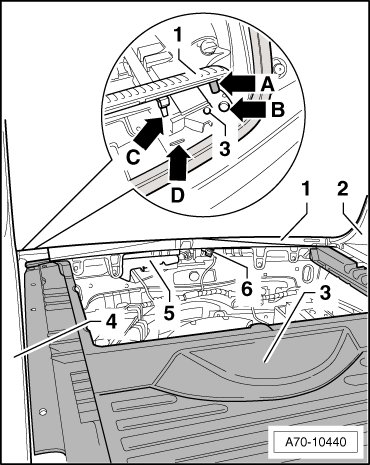

Fig 1: Insert Rear Cross Panel Trim -1- With The Pins -Arrow A- In The Hole -Arrow B- In Luggage Compartment Floor -3-,

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Observe the following when doing so:

Before installing rear cross panel trim -1-, left -2- and right -4- luggage compartment side trims and luggage compartment floor -3- or the floor support on vehicles with a 3rd row must be installed.

-- Insulation -5- must be guided over striker pin.

Refer to Installing .

-- Insert rear cross panel trim -1- with the pins -arrow A- in the hole -arrow B- in luggage compartment floor -3-, or in the floor support in vehicles with a 3rd row.

-- At the same time, press the rear cross panel trim down. The clamps -arrow C- must be guided into the mounts -arrow D- in the body.

-- Then tighten screws. Refer to -Item 4- REAR CROSS PANEL TRIM OVERVIEW to tightening specification.

-- Install the rubber seal lip over the leading edge of the rear cross panel trim.
