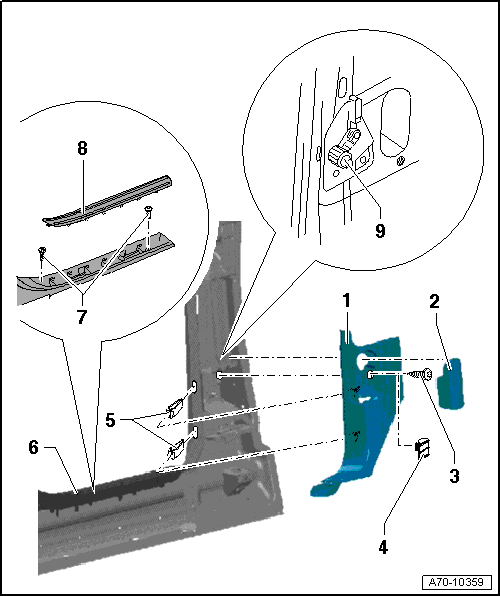

Lower A-Pillar Trim Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- A-Pillar Lower Trim
- Removing and Installing. Refer to LOWER A-PILLAR TRIM, REMOVING AND INSTALLING .
- Hood Release Lever
- For hood
- Removing and Installing. Refer to LOWER A-PILLAR TRIM, REMOVING AND INSTALLING .
- Bolt
- Tighetening Specifications: 2.5 Nm. Refer to LOWER A-PILLAR TRIM OVERVIEW .
- Driver side only
- Clip
- Only passenger side.
- Clips
- Quantity: 2
- Replace if damaged or deformed.
- Sill Panel Strip
- Must be removed in the transition area to the lower A-pillar trim from the sill.
- Bolt
- 2.5 Nm
- For the sill panel on the sill.
- Front Trim
- Mount
- For operating lever.
