Belt Extraction Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

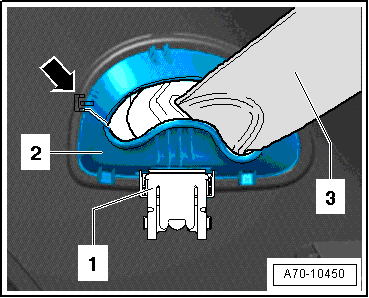

Fig 1: Removing Belt Extraction Panel
GWWA70-10450Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat belt latching tongue securing clamps -1-

-- Beginning at the separation point -arrow-, turn belt extraction panel -2- clockwise to unclip it from the D-pillar trim.

-- Remove belt webbing -3- from belt extraction panel -2-.
