Belt Extraction Panel, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

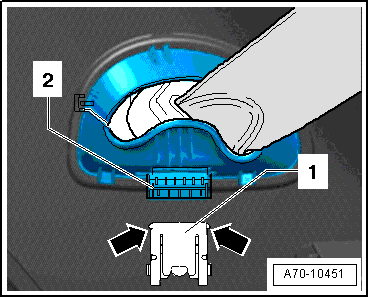

Installation takes place in reverse order of removal, securing clamps -1- must be clipped into installation position. Refer to Fig 1.
-- Clip securing clamp -1- into installation position on belt extraction panel tab -2- as shown in illustration.
- Securing clamp tabs -arrows- must engage in tab -2-.
