Roof Grab Handle, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

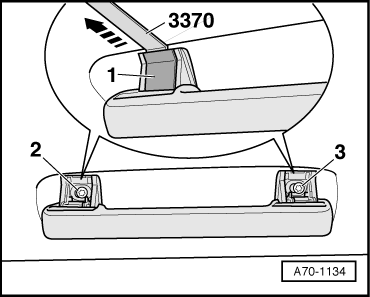

Fig 1: Opening Roof Grab Handle Cover And Removing Bolts And Roof Grab Handle
GWWA70-1134Courtesy of AUDI OF AMERICA, LLC

-- Open roof grab handle cover -1- with Backrest Panel Tool3370.

-- Remove the bolts -2- and -3-.

-- Remove roof grab handle.
