Pull Handle, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

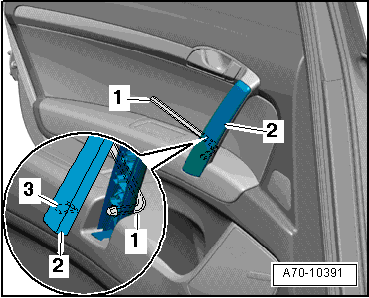

Fig 1: Insert An Angled Hex Socket Head Wrench 4 Mm -Item 1- Into Hole From Behind

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Insert an angled hex socket head wrench (3 mm to 4 mm) -item 1- into hole from behind as shown illustration.

NOTE:

The hex socket head wrench release the retaining tabs -3- on the door pull handle cover -2-.

-- Remove cover from door pull handle.

-- Remove the bolts -1- and -2-.

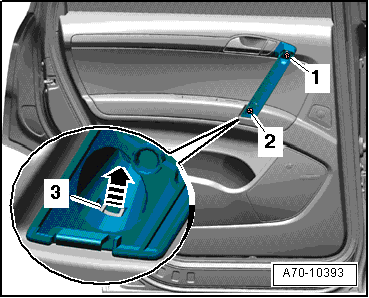

Fig 2: Remove Screws -1- And -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Using a small screwdriver, release the retaining tab -3- in direction of -arrow- and remove bottom of door handle from door trim.

NOTE:

By loosening bottom of door handle, the top is also released from the door trim.
