Armrest, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove ashtray. Refer to ASHTRAY, REMOVING AND INSTALLING .

-- Remove door handle. Refer to PULL HANDLE, REMOVING AND INSTALLING .

-- Remove the door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove insulation in upper area from door trim.

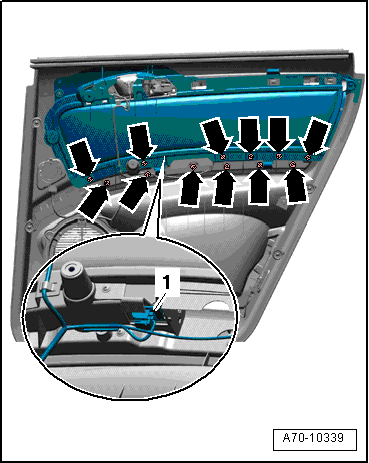

Fig 1: Disconnect The Connector -1-.
GWWA70-10339Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove screws -arrows- and remove armrest.
