Side Instrument Panel Vent, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removing and installing is identical on both the left and right sides.
The instrument panel vent has a hole on the side for attaching the T-Handle Hook3438.
-- Position instrument panel vent blades so they are horizontal.

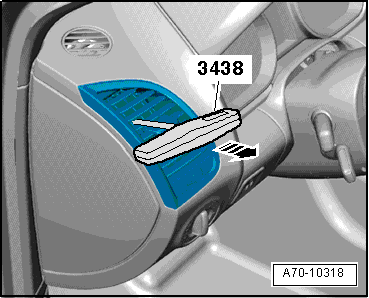

-- Carefully pull the instrument panel vent out of the installation opening -arrow- on side using T-Handle Hook3438.
-- Disconnect electrical connector on instrument panel vent, if equipped.
