Center Instrument Panel Vent, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

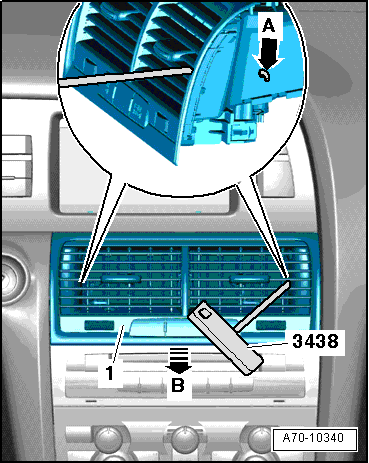

The center instrument panel vent has a hole on the left and right -arrow A- to engage the T-Handle Hook3438.
-- Position the center instrument panel vent blades so that they are horizontal.
-- Carefully remove center instrument panel vent -1- from the installation opening -arrow B- with the T-Handle Hook3438 on both sides.
-- Disconnect electrical connector.
