Central Tube Angled Bracket, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove instrument panel central tube. Refer to INSTRUMENT PANEL CENTRAL TUBE, REMOVING AND INSTALLING .
-- For reinstallation, mark the left and right installation location of the central tube angle bracket in the height and side positions with respect to the A-pillar.

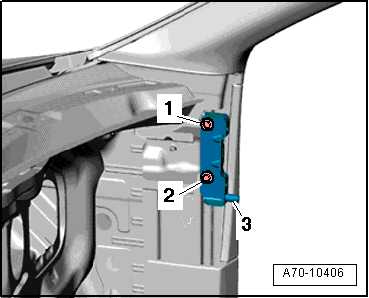

-- Remove screws -1- and -2- and remove mounting bracket.
