Window Frame Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Lower the door window.

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

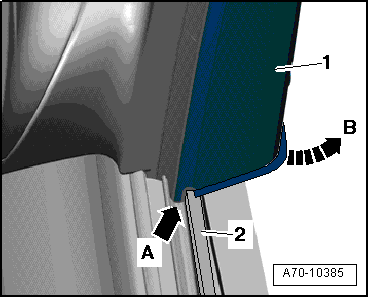

-- Raise edge -arrow A- of window frame trim -1- over window frame seal -2-.

Fig 1: Raise Edge -Arrow A- Of Window Frame Trim -1- Over Window Frame Seal -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Beginning at front, remove window frame trim -1- from window frame -arrows-.

Fig 2: Remove Window Frame Trim

Courtesy of AUDI OF AMERICA, LLC

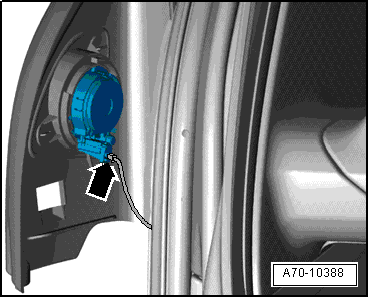

-- Disconnect electrical connector -arrow- on speaker.

Fig 3: Disconnect Electrical Connector -Arrow- On Speaker.

Courtesy of AUDI OF AMERICA, LLC
