Armrest, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Passenger Side Door Trim:

-- Remove door handle. Refer to PASSENGER PULL HANDLE, REMOVING AND INSTALLING .

Procedure for Both Sides:

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- If present, remove the air duct. Refer to AIR DUCT, REMOVING AND INSTALLING .

-- Remove insulation -3- in upper area of door trim.

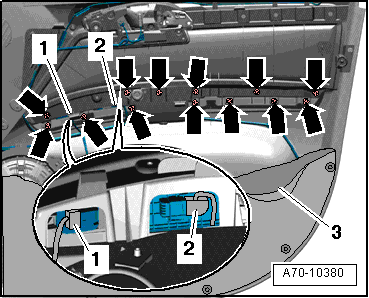

Fig 1: Identifying Screws -Arrows- And Electrical Connectors -1- & -2-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector at mirror adjustment switch -1- and window regulator switch -2-.

-- Remove the bolts -arrows-.

-- Remove armrest -1- in direction of -arrow-.

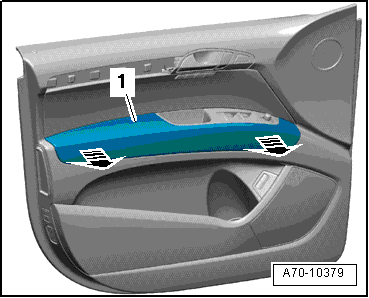

Fig 2: Identifying Removal Of Armrest -1- In -Direction Of Arrow-

Courtesy of AUDI OF AMERICA, LLC
