Belt Latch, Replacing

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1331

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Torque wrench V.A.G 1331

Removing:

• Remove seat → Seat, Removing and Installing .

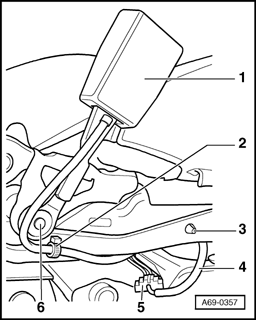

Fig 2: Belt Buckle, Cable Tie, Clip, Wire, Connector & Screw

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Unclip wire - 4  - at clip - 3  -.
• Open cable tie - 2  -.
• Disconnect the connector -5-.
• Remove screw - 6  -.

• Remove belt buckle - 1  -.

Installing:

• Installation is reverse of removal. Note the following for this procedure:

• Replace the belt latch mounting bolt.

Tightening torque:
