Divided Front Center Armrest Cover, Removing and Installing

NOTE:

Do not press the button in the upholstery after removing the cover.
The spring inserted will come out if the button is pressed.

Removing

Remove split center armrest → Divided Front Center Armrest, Removing and Installing .
Open center armrest.

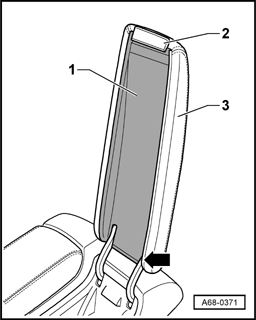

Fig 1: Divided Front Center Armrest Cover, Removing And Installing

GW00030015

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully pry out cover - 1 - from upholstery piece - 3 -, beginning at bottom - arrow -.
Pull out cover - 1 - downward.

Installing

Slide cover - 1 - under the button - 2 -.
Clip cover - 1 - to upholstery piece - 3 -.
Install split center armrest → Divided Front Center Armrest, Removing and Installing .
