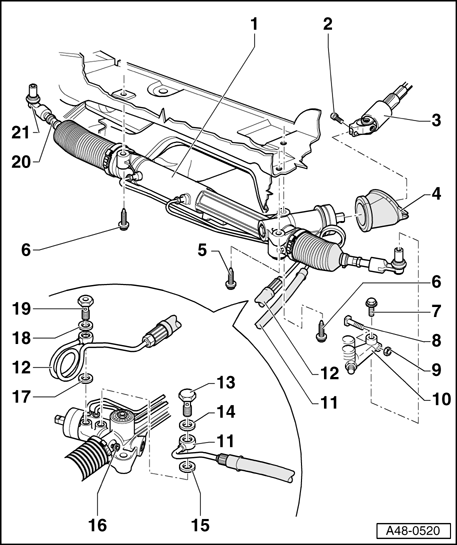

Power Steering Gear, Assembly Overview

Power steering gear is completely removed and installed with tie rods.

1 - Power assisted steering gear with tie rods

• Removing and installing → Power Steering Gear, Removing and Installing
• Servicing → Power Steering Gear, Servicing

2 - Bolt, 30 Nm

3 - Steering Column

4 - Bulkhead boot

• Check for tears and scuffing

5 - Bolt, 95 Nm

• Follow tightening sequence → Tightening sequence:  under Power Steering Gear, Removing and Installing  .

Adjust torque wrench V.A.G 1332 to 70 Nm to tighten bolt.

This torque specification applies only in conjunction with Insert Tool T40037.

6 - Bolt, 95 Nm

• Follow tightening sequence → Tightening sequence:  under Power Steering Gear, Removing and Installing  .

7 - Bolt, 5 Nm

8 - Bolt

9 - Self-locking nut, 50 Nm

• Always replace after removal

10 - Stub axle carrier (steering arm)

11 - Return hose

• Right hand drive only.

12 - Pressurized line

• Right hand drive only.

13 - Banjo bolt, 35 Nm

14 - Seal

• Always replace

15 - Seal

• Always replace

16 - Cylinder screw, 22 Nm

• Screw plug → Centering Steering

17 - Seal

• Always replace

18 - Seal

• Always replace

19 - Banjo bolt, 47 Nm

20 - Tie Rod

• Removing and installing → Tie Rods, Removing and Installing

21 - Tie rod end

• Removing and installing → Tie Rod Ball Joint, Removing and Installing
