C-Pillar Trim, Removing and Installing

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1783

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Torque wrench V.A.G 1783

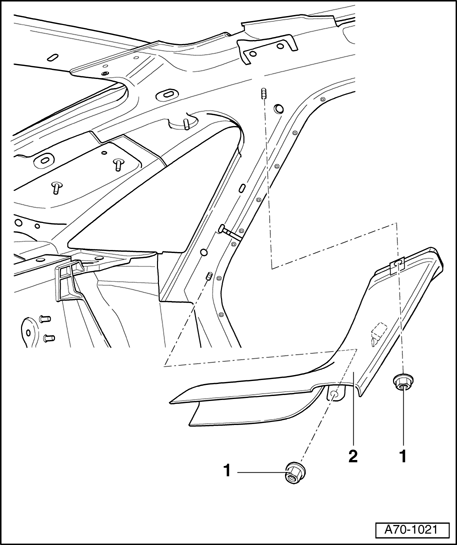

Fig 2: C-Pillar Trim & Nuts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Nuts (qty. 2)

• Tightening torque 4 Nm

2 - C-pillar trim

• Removing

• Remove D-pillar trim → D-Pillar Trim, Removing and Installing .
• Remove nuts - 1  - (qty. 2).
• Remove narrow D-pillar trim → Narrow D-Pillar Trim, Removing and Installing .
• Pull off C-pillar trim - 2  - inward.

• Installing

• Install C-pillar trim - 2  - in reverse order of removal.

• Make sure that door rubber is pulled cleanly over C-pillar trim.
