Front Center Console Extension

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1410

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Torque wrench V.A.G 1410

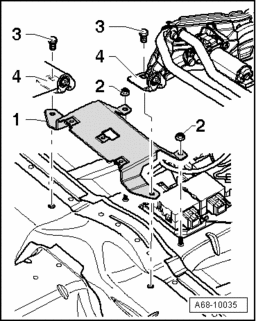

Fig 2: Front Center Console Extension

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove center console extension → Center Console Extension, Removing and Installing .
• Remove bolts - 3  - (2x) of electric individual seats - 4  -. 40 Nm.
• Remove nuts - 2  - (qty. 2). 4 Nm.
• Pull electric individual seats - 4  - slightly upward, loosen other bolts on electric individual seats - 4  - if necessary.

• Remove bracket - 1  -.
