Headrest Guides, Backrest Removed, Removing
Removing
- Remove the headrests → Headrests, Removing and Installing .

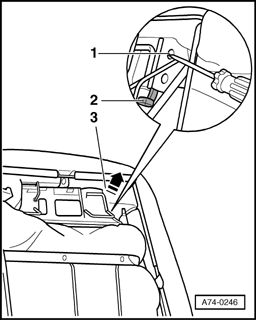

- Push upholstery - 3 - upward in direction of arrow.
NOTE:
- The openings on which to position the screwdriver are located on the outer side respectively.
- Using a screwdriver, pry out headrest guide - 2 - upward through opening - 1 -.
- Pull out headrest guide - 2 - upward.
Installing
- Ensure that headrest guides are installed with buttons on the left side in the direction of vehicle travel.
- Install headrest guide - 2 - in reverse order of removal.
