Upper Backrest Cover, Removing and Installing

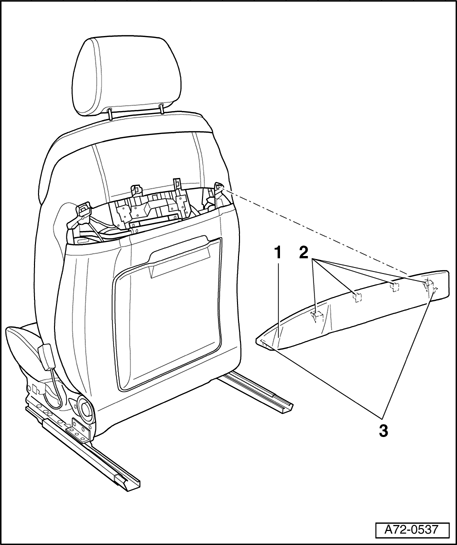

Fig 1: Upper Backrest Cover, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Top backrest panel

• Removing

• Move upper backrest completely forward.
• Release clips - 2  - (4x). Insert a flat screwdriver into clip and turn it clockwise until clip releases.
• Disengage backrest cover - 1  - upward from brackets - 3  - (qty. 2).

• Installing

• Install top backrest panel - 1  - in reverse order of removal.

2 - Clips (qty. 4)

3 - Retainers (qty. 2)
