Power Headrest, Removing and Installing

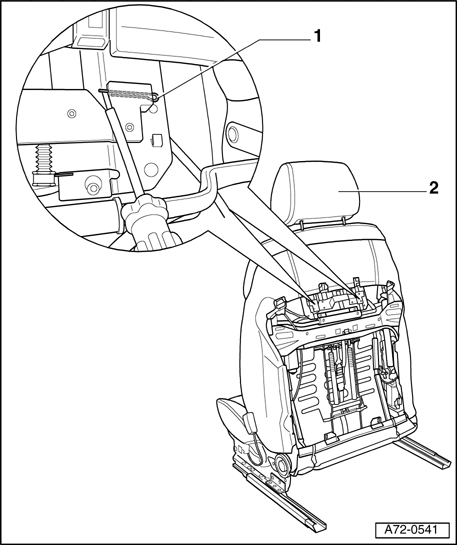

Fig 1: Power Headrest, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Clamps (qty. 2)

2 - Headrest

• Removing

• Remove top backrest cover → Upper Backrest Cover, Removing and Installing .
• Remove bottom backrest cover → Lower Backrest Cover, Removing and Installing .
• Pull the clips - 1  - (Qty. 2) on the open sdie back using a screwdriver.
• Move the backrest back.

• Pull out headrest - 2  - upward.

• Installing

• Install headrest - 2  - in reverse order of removal.
• Electric headrests with memory: To readapt the headrest stop positions, drive headrest once completely downward and upward.
