Seat Pan, Removing and Installing

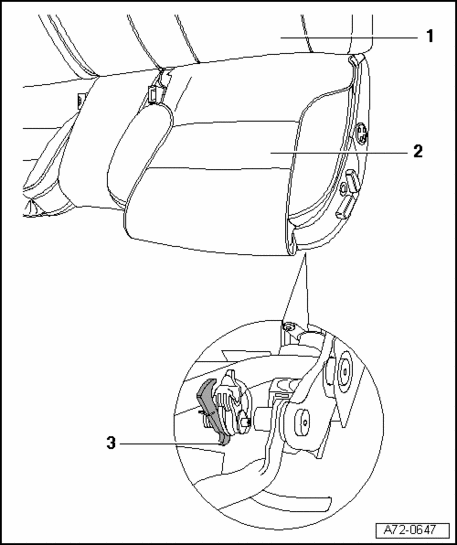

Fig 1: Individual Rear Seat, Seat Pan & Lever

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Individual rear seat

2 - Seat pan

• Removing

• Move the seat angle all the way and the adjust the forward/back adjustment to the center position.
• Reach under the seat on the door sill side and locate the lever - 3  -.
• Press lever - 3  - and pull seat pan - 2  - upward.
• Disconnect electrical connection beneath seat pan - 2  -.

• Disengage seat pan - 2  - from individual rear seat - 1  - in direction of vehicle travel.

• Installing

• Engage seat pan - 2  - in individual rear seat - 1  - on left and right sides → Rear seat pan mount .
• Press seat pan - 2  - downward until it engages at front.

3 - Lever
