Backrest Ventilation, Removing and Installing

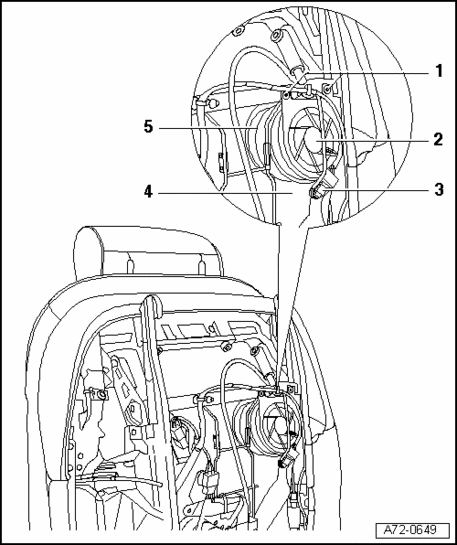

Fig 1: Rivets, Seat Ventilation, Connector, Upholstery & Rubber Guide

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rivets (2x)

2 - Seat ventilation

• Removing

• Remove seat pan → Seat Pan, Removing and Installing .
• Remove individual rear seat → Individual Rear Seat, Removing and Installing .
• Remove connector - 3  -.
• Drill out rivets - 1  - (2x).

• Remove seat ventilation - 2  -.

• Installing

• Install seat ventilation - 2  - in reverse order of removal.

3 - Connector

4 - Upholstery

5 - Rubber guide
