Narrow D-Pillar Trim, Removing and Installing

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1783

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Torque wrench V.A.G 1783

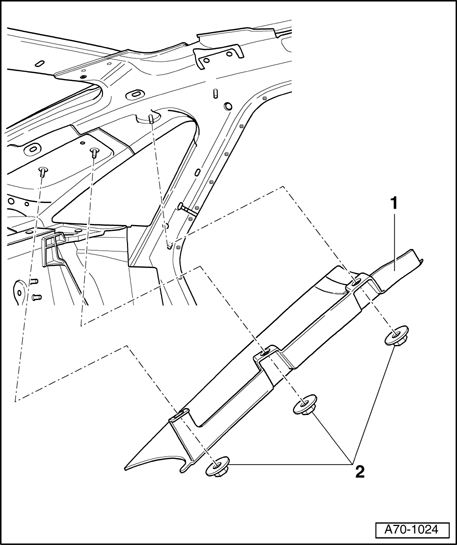

Fig 2: Narrow D-Pillar Trim & Nuts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Narrow D-pillar trim

• Removing

• Remove nuts - 2  - (3x).
• Pull off narrow D-pillar trim - 1  -.

• Installing

• Install narrow D-pillar trim - 1  - in reverse order of removal.

2 - Nuts (3x)

• Tightening torque 4 Nm.
