Third Rear Three-Point Seat Belt, Fixed Rear Seat Backrest, Removing and Installing

Special tools, testers and auxiliary items required

• Torque wrench V.A.G 1332

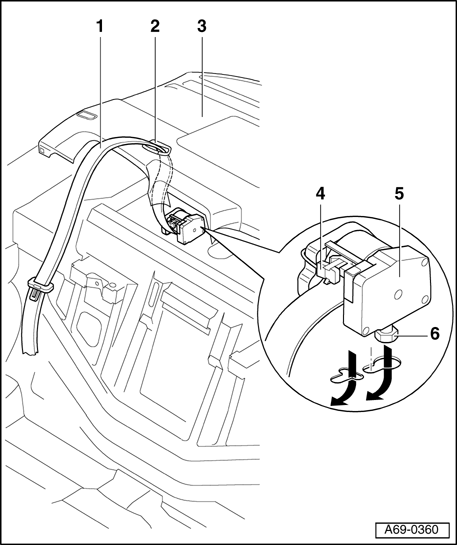

1 - Third rear three-point seat belt

• Removing

• Remove rear seat bench → Rear Bench Seat, Removing and Installing .
• Remove rear seat backrest → Rear Backrest, Removing and Installing .
• Remove rear shelf → Rear Shelf, Removing and Installing .
• Remove anchorage point for center rear floor assembly → Center Floor Assembly Anchorage Points .

• Remove screw - 6  -.
• Disconnect belt tensioner connector - 4  -.
• Disengage belt roller - 5  -.

• Installing

• Disengage belt reel - 5  - in direction of arrow.
• Continue the rest of the installation of the third rear three-point seatbelt - 1  - in the reverse order of removal.
• Check belt wear detection.

2 - Seatbelt guide cover

3 - Rear shelf

4 - Belt tensioner connector

5 - Belt roller/belt tensioner

6 - Screw

• Tightening torque 55 Nm.
