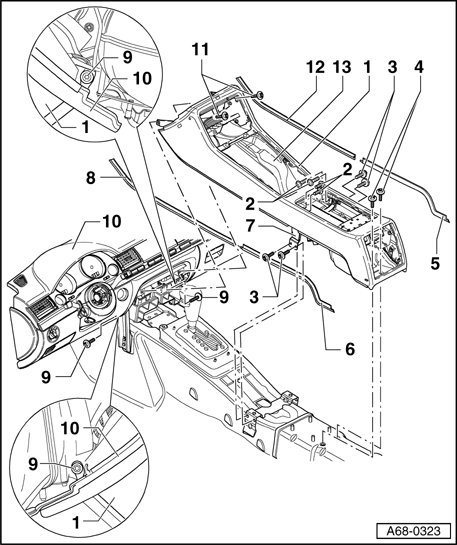

Center Console without Extension, Assembly Overview

1 - Center console without extension

• Removing and Installing → Center Console without Extension, Removing and Installing

2 - Bolts (4x), 4 Nm

3 - Bolts (4x), 4 Nm

4 - Bolts and nuts (2x), 4 Nm

5 - Right rear carpet strip

• Removing and Installing → Front and Rear Carpet Strips, Removing and Installing

6 - Left rear carpet strip

• Removing and Installing → Front and Rear Carpet Strips, Removing and Installing

7 - Center bracket of center console

• Removing and Installing → Center Console Bracket, Center Armrest Bracket and A/C Controls/Front Ashtray Bracket, Removing and Installing

8 - Left front carpet strip

• Removing and Installing → Front and Rear Carpet Strips, Removing and Installing

9 - Bolts (Qty. 2), 4 Nm

10 - Instrument Panel

11 - Bolts (Qty. 2), 4 Nm

12 - Right front carpet strip

• Removing and Installing → Front and Rear Carpet Strips, Removing and Installing

13 - Rear air channel

• Removing and Installing → Rear Air Distributor and Air Duct, Removing and Installing
