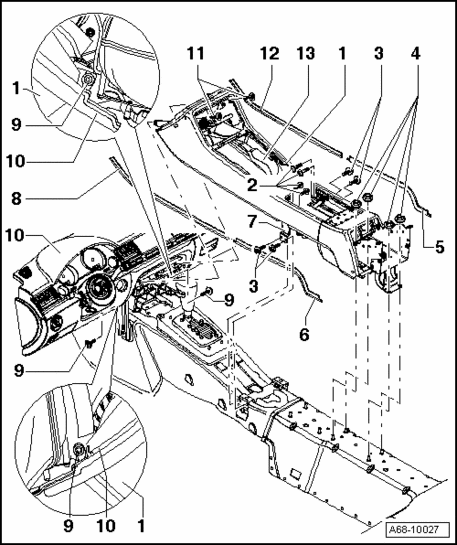

Center Console with Extension, Assembly Overview

1 - Center console (with extension)

• Removing and Installing → Center Console with Extension, Removing and Installing

2 - Bolts (4x), 4 Nm

3 - Bolts (4x), 4 Nm

4 - Nuts (4x), 4 Nm

5 - Right rear carpet strip

• Removing and Installing → Front and Rear Carpet Strips, Removing and Installing

6 - Left rear carpet strip

• Removing and Installing → Front and Rear Carpet Strips, Removing and Installing

7 - Center bracket of center console

8 - Left front carpet strip

• Removing and Installing → Front and Rear Carpet Strips, Removing and Installing

9 - Bolts (Qty. 2), 4 Nm

10 - Instrument Panel

11 - Bolts (Qty. 2), 4 Nm

12 - Right front carpet strip

• Removing and Installing → Front and Rear Carpet Strips, Removing and Installing

13 - Rear air channel
