Rear Lid, Adjusting

Special tools and workshop equipment required

• Gauge - Gap Adjustment 3371

Panel Gap Dimensions

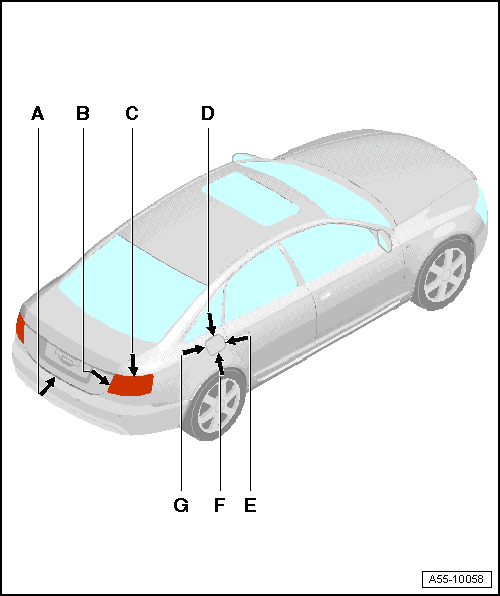

Fig 1: Rear Panels Gap Dimensions (Sedan)

Courtesy of AUDI OF AMERICA, LLC

• Dimension -A- = 4.5 mm ± 0.5 mm
• Dimension -B- = 3.5 mm ± 0.5 mm
• Dimension -C- = 3.5 mm ± 0.5 mm
• Dimension -D- = 2 mm ± 0.5 mm
• Dimension -E- = 2 mm ± 0.5 mm
• Dimension -F- = 2.5 mm ± 0.5 mm
• Dimension -G- = 2 mm ± 0.5 mm
• Make sure all gaps are parallel to body
