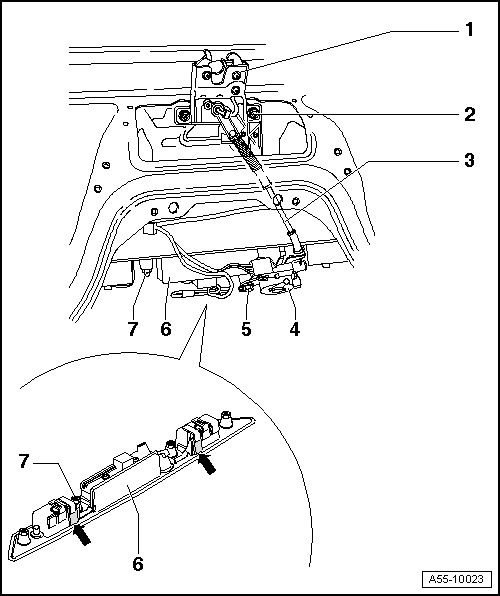

Rear Lid Lock And Grip Piece Overview
Courtesy of AUDI OF AMERICA, LLC
- Rear Lid Lock
- To remove, disengage release.
- Remove the hex nuts -2- and remove rear lid lock.
- Nut
- Tightening specification: 8 Nm
- Release Cable
- Lock Cylinder
- Removing
- Disconnect electrical connectors.
- Disengage release -3- from lock cylinder.
- Remove combination bolt -5-.
- Twist lock cylinder 90°.
- Remove lock cylinder from handle mechanism.
- Combination Bolt
- Tightening specification: 8 Nm
- Handle
- Removal:
- Rear lid trim removed.
- Lock cylinder removed.
- Remove hex head collar nuts -7-.
- Press in catches -arrows-.
- Remove grip piece.
- Flanged Hex Nut
- Tightening specification: 8 Nm
