Hood Panel Gap Dimensions

Special tools and workshop equipment required

• Gauge - Gap Adjustment 3371

Gap Dimensions

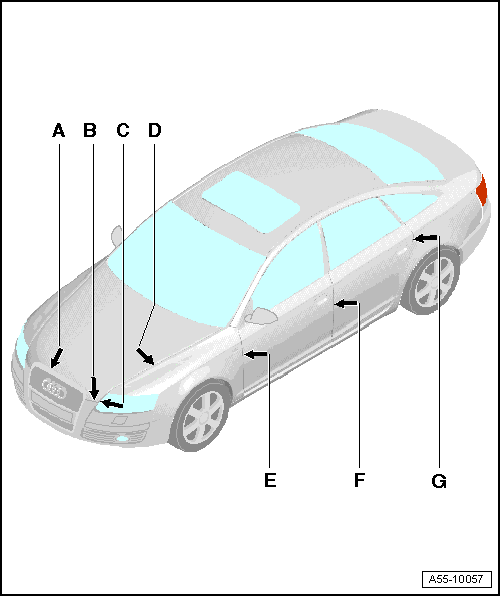

Fig 1: Hood And Door Panel Gap Dimensions

Courtesy of AUDI OF AMERICA, LLC

• Dimension A = 4.5 mm ± 0.5 mm
• Dimension B = 4.5 mm ± 0.5 mm
• Dimension C = 3.5 mm ± 0.5 mm
• Dimension D = 3 mm ± 0.5 mm
• Dimension E = 1.5 mm ± 0.5 mm
• Dimension F = 1.5 mm ± 0.5 mm
• Dimension G = 2.5 mm ± 0.5 mm
