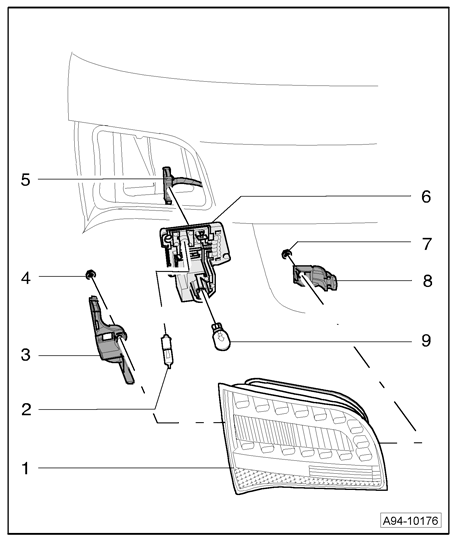

Rear lights in rear lid - LED version, assembly

1 - Housing

• With LEDs
• Removing and installing → Rear lights in rear lid, removing and installing

2 - Light bulb for rear fog lamp

• Halogen 12 V, 21 W

3 - Clamp mounting

• For securing housing at rear lid

4 - Nut (3.5 Nm)

5 - Electrical harness connector

6 - Lamp holder

• For light bulb for back-up lamp/rear fog lamp
• Removing and installing → Rear lights in rear lid - bulbs, replacing

7 - Nut (3.5 Nm)

8 - Clamping bracket

• For securing bulb socket ad housing at rear lid

9 - Light bulb for back-up lamp

• 12 V, 16 W
