Rear Cigarette Lighter: Removing

-- The release tabs -2- on the T40148 must engage into the openings on the Rear Cigarette Lighter -U9- -3- -arrow-, and the threaded pin -1- must slide down as far as the stop.

Fig 1: Preparing To Remove Cigarette Lighter

Courtesy of AUDI OF AMERICA, LLC

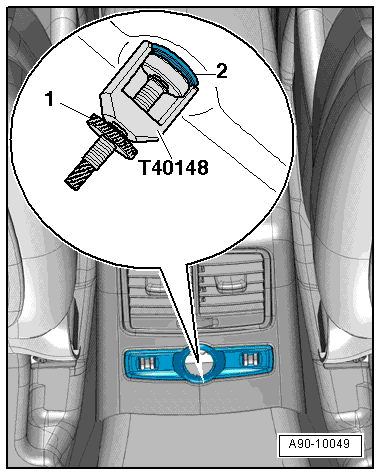

-- Slide the Release Tool for Cigarette Lighter T40148 into the rear cigarette lighter -2- as far as the stop.

Fig 2: View Of Release Tool T40148 And Rear Cigarette Lighter Socket

Courtesy of AUDI OF AMERICA, LLC

-- Rotate the thumb wheel -1- on the T40148 clockwise as far as the stop.

• The piston -2- is pulled upward and the release tabs -1- on the T40148 spread -arrows-.
  Fig 3: Identifying Release Tool T40148 In Use

  Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear cigarette lighter from the rear center console.

-- Disconnect the electrical connector.
