COOLANT TEMPERATURE SENSOR ELECTRICAL CONNECTOR, DISCONNECTING (Engine Code: BVJ)

Procedure

-- Remove rear engine cover -arrows-.

Fig 1: Removing Rear Engine Cover

Courtesy of AUDI OF AMERICA, LLC

-- Lay aside fuel line and line to EVAP canister at air guide pipe.

Fig 2: Locating Fuel Line, EVAP Canister At Air Guide Pipe

Courtesy of AUDI OF AMERICA, LLC

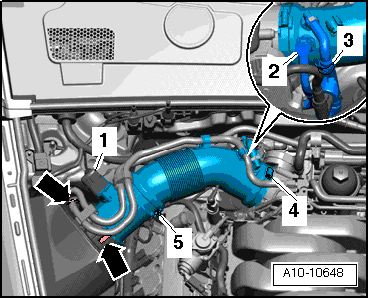

-- Remove air guide hose from air filter housing, to do so loosen hose clamp -4 and 5-.

-- Lay aside air guide hose with wires -2 and 3- connected.

NOTE:

Disregard -1 and arrows-.

-- Disconnect electrical harness connector -arrow- at Engine Coolant Temperature Sensor -G62-.

Fig 3: Locating Engine Coolant Temperature (ECT) Sensor -G62-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

For the sake of illustration, depicted without engine.

Install in reverse order.
