Spring Mat, Removing And Installing: Removing
- Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Turn on the ignition.
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove The Front Seat:
- Standard seat and Sport seat (manual). Refer to FRONT SEAT, REMOVING AND INSTALLING, MANUAL .
-- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture:VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .
-- Remove the headrests. Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH SLIDING LOCKING MECHANISM .
-- Remove the cover with padding. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
-- Remove the springs -A through D- from the backrest frame -1-.
The Springs -A Through D- Can Also Stay Engaged In The Backrest Frame -1- And The Spring Mat -2- Can Be Disengaged Directly From The Springs.

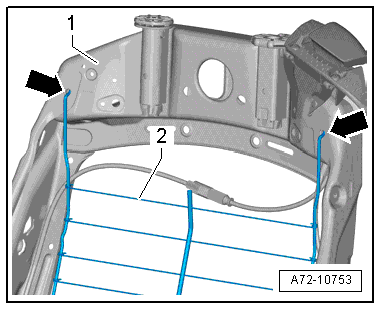

-- Tip spring mat -2- forward.
-- Remove the spring mat -2- from the openings -arrow- in the backrest frame -1-.
